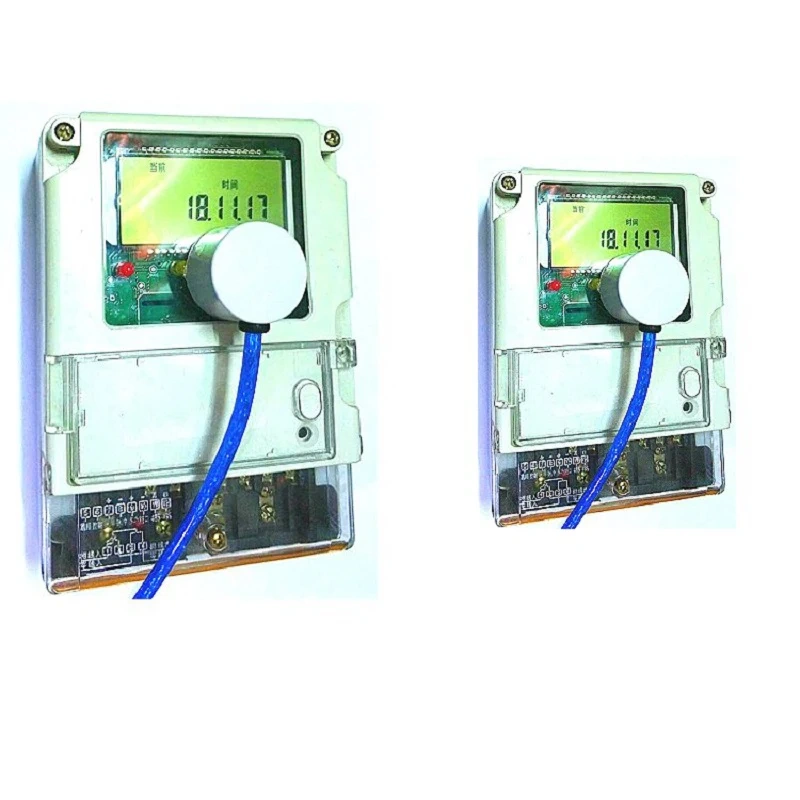

Application: Data collection of electric energy meters, gas meters, water meters

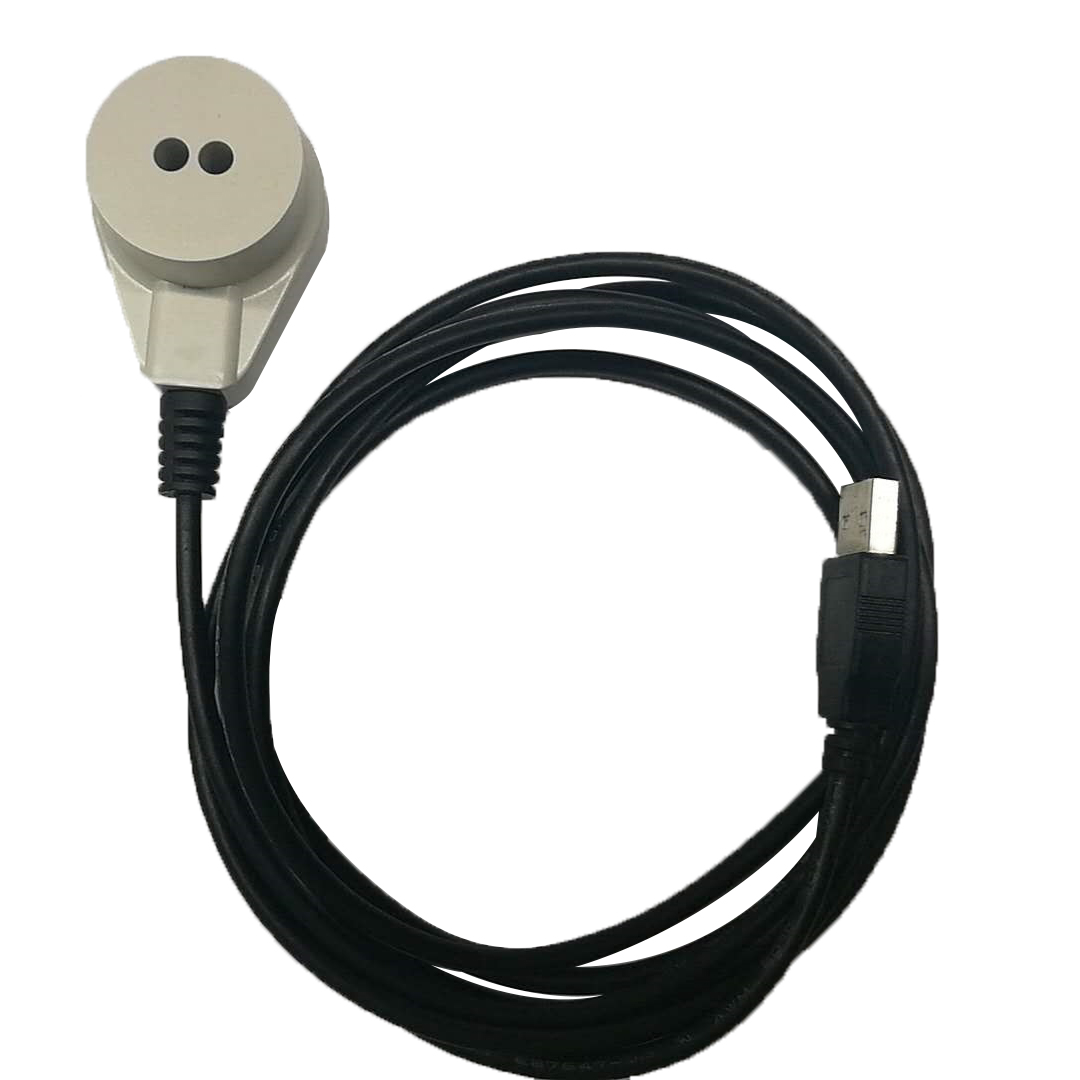

New original CP2102 imported chip, USB interface power supply, no need for external power supply.
Support multiple versions of Windows operating system, MacOS, Linux and other systems.

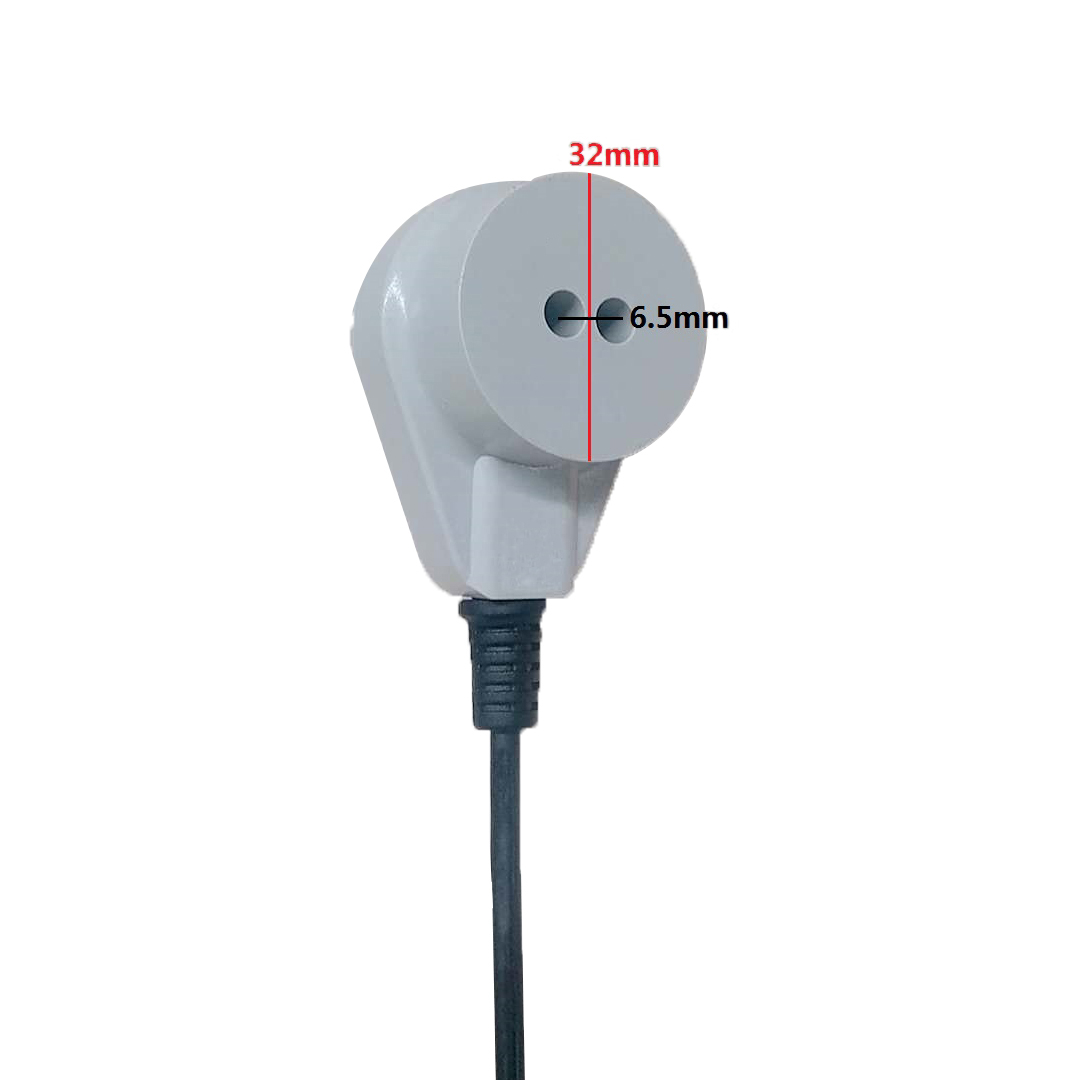

Infrared head size: diameter 32mm,transmitting and receiving distance: 6.5mm (size is for reference only, tolerance ±2mm)
Modulation frequency: Modulation and demodulation signal frequency: 38KHz
Communication parameters: communication baud rate supports 300-2400bps
Communication distance and angle: 5m, ≤15°
IEC standard industrial grade, the converter adopts CP2102 chip, ±15KV ESD protected transceiver circuit, Taiwan Everlight industrial-grade optical receiver/transmitter.
Transparent transmission, supported full protocol signal conversion, such as IEC62056-21, IEC1107, DLMS, MDBUS, etc. The transmission rate is: 300/600/1200/2400/4800/9600/19200bps.
Installation: 25mm * 15mm * 5mm galvanized magnet, strong magnetic adsorption (IEC62056 regulation), it is easy to fix on the optical interface device.
Environment: specified working range -25℃-70℃。
