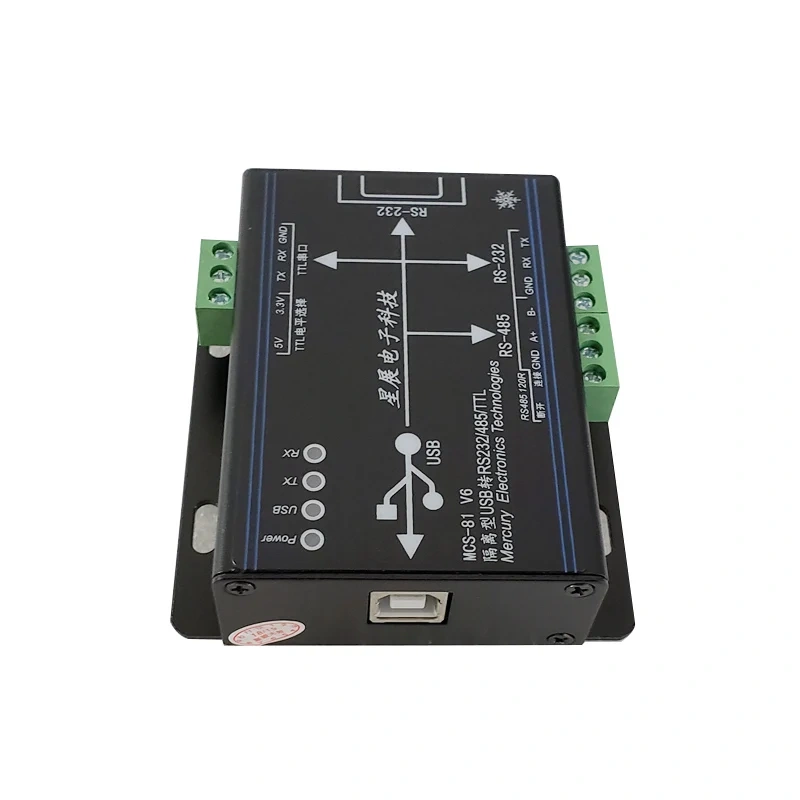

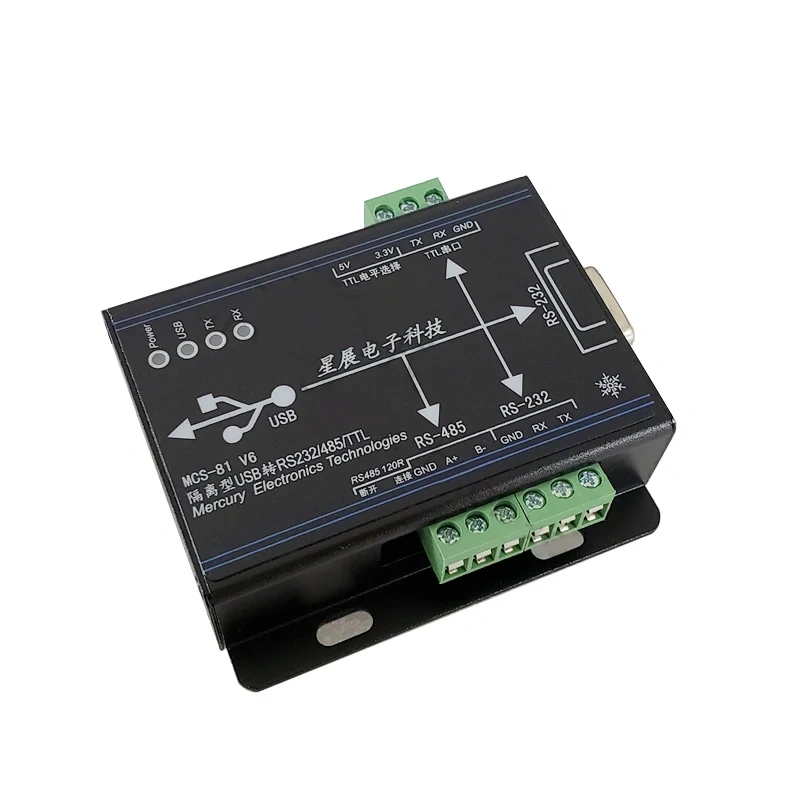

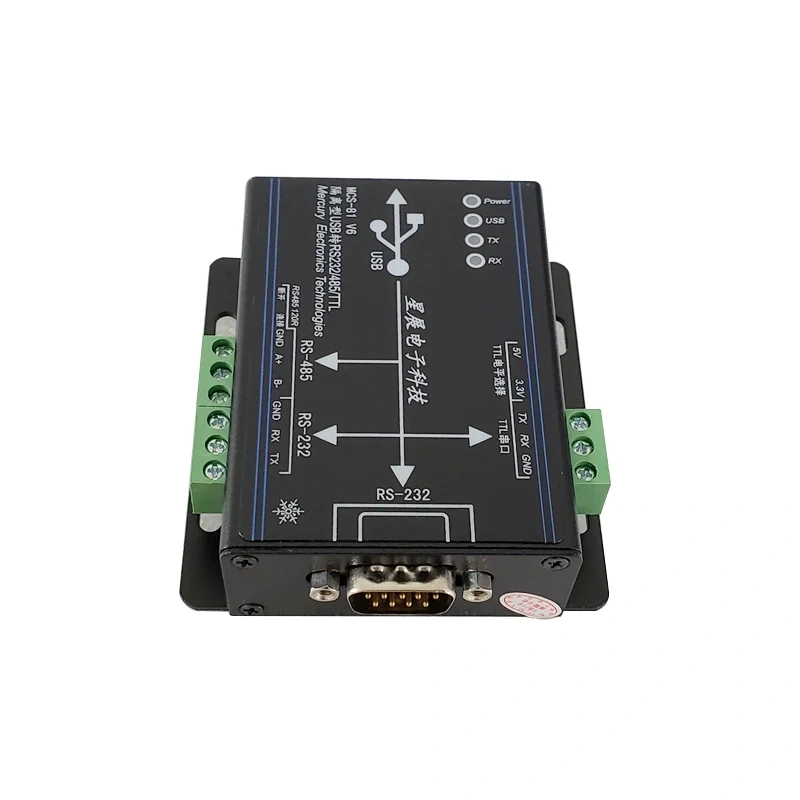

FTDI Chip Isolated USB to TTL/RS232/RS485 serial port Adapter Industrial-grade TTL isolation RS-232 isolation RS-485 isolation
Isolated USB to TTL/RS-232/RS-485 converter, without external voltage, adopts industry-renowned FT232RL conversion chip, ADI integrated magnetic isolation chip, original MORNSUN isolation, integrated static protection, TVS pulse protection, overcurrent Protection and gas discharge lightning protection, CNC aluminum alloy shell, distribution shielded USB cable, automatic transmission and reception switching, speed up to 921600bps, effectively avoiding computer damage, blue screen and crash caused by strong interference, suitable for various high-demand industrial grades Communication occasions.
FTDI Driver Download, Please Click Here :
Main Feature
● Brand new original FT232RL chip, a serial conversion chip with excellent reputation in industrial applications.
●Support Windows/Mac/Linux 32/64 bit operating system, compatible with the original serial port program without any modification.
●ADI integrated magnetic isolation chip, good stability, low power consumption and high reliability.
●Communication rate TTL/485: Maximum 921600bps. RS-232: Maximum 460800bps.
●Support 300/600/1200/2400/4800/9600/57600/115200/230400 and other standard baud rates.
●Support USB to TTL serial port (5V/3.3V), RS-232, RS-485 three functions, one converter takes everything.
●Integrated original MORNSUN isolated power supply, no need for external power supply, USB plug-in can be used
●PCB enlarges the isolation partition, the width is more than 3mm, and maintains sufficient creepage distance, and the isolation safety is better.
●There is no electrical connection between the USB side and the output side, which fully guarantees that the computer USB will not be damaged due to external shocks or short circuits, and avoid crashes and communication instability caused by interference.
●The RS-485 interface integrates four protections against static electricity, pulse, overcurrent, and lightning strikes, which fully guarantees industrial-grade communication safety.
●RS-485 uses stud-type pluggable terminal blocks, which are reliable and convenient. The longest communication distance is 1200m, with 32 nodes.
●RS-485 kernel-level data flow control, no need to send and receive switching (the imitation product is external control)
●RS-485 120R balance resistance is short-circuited by a switch, which is easy to operate.
●TTL level is switched by switch, 5V/3.3V level is supported, stud type terminal, reliable wiring, and the longest communication distance is 10m.
● TTL/RS-232 interface onboard TVS, effectively suppressing surge power and peak voltage.
●RS-232 interface point-to-point communication distance is up to 15m, pluggable stud type and DR9 pin 2 wiring methods, flexible and easy to use.
●Integrated power supply/USB drive/send/receive 4 LED indicators (4 colors of blue, yellow, red and green).
●Aluminum alloy shell, oxidized frosted treatment, CNC numerical control opening, exquisite workmanship, strong and durable

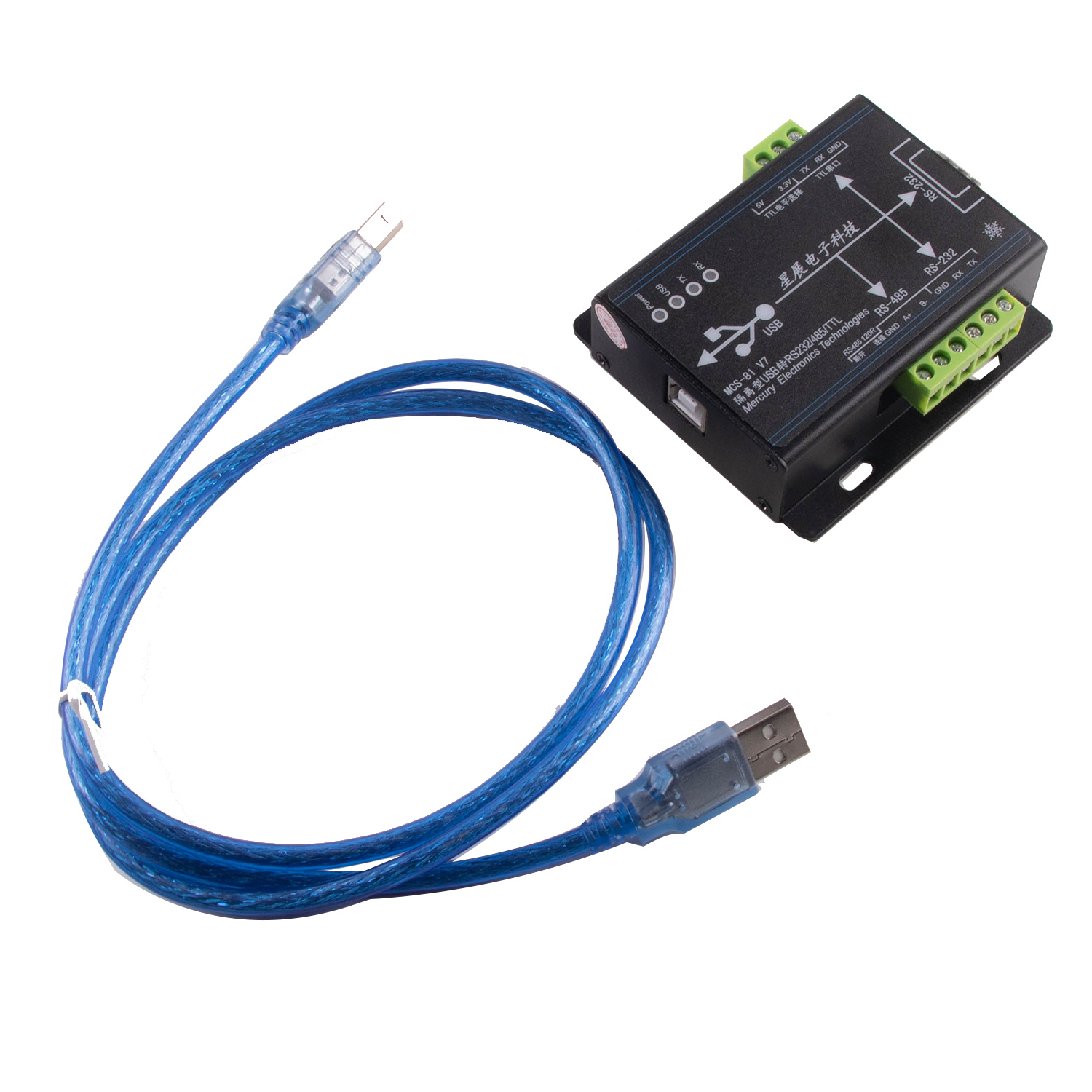

●Free 1.0m shielded USB cable, reliable, durable and stable choice.
●High-quality USB-B type interface, the maximum length of USB to PC is 5M, smooth plugging and unplugging, firm and reliable, nickel-plated and stainless.
●Environmental range: industrial temperature -40℃-85℃. Humidity 5%RH-95%RH
