Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables
The FTDI chipset is highly customizable and broadly compatible, making it the ideal solution for any setup
Portable USB-Powered design requires no bulky power adapter or outlet
USB to Null Modem (Cross-Wired) RS232 Serial Adapter
Integrated FTDI USB UART Chip
Baud Rate up to 921.6Kbps
COM Port assignments maintained across reboot
USB-powered - no external power adapter required

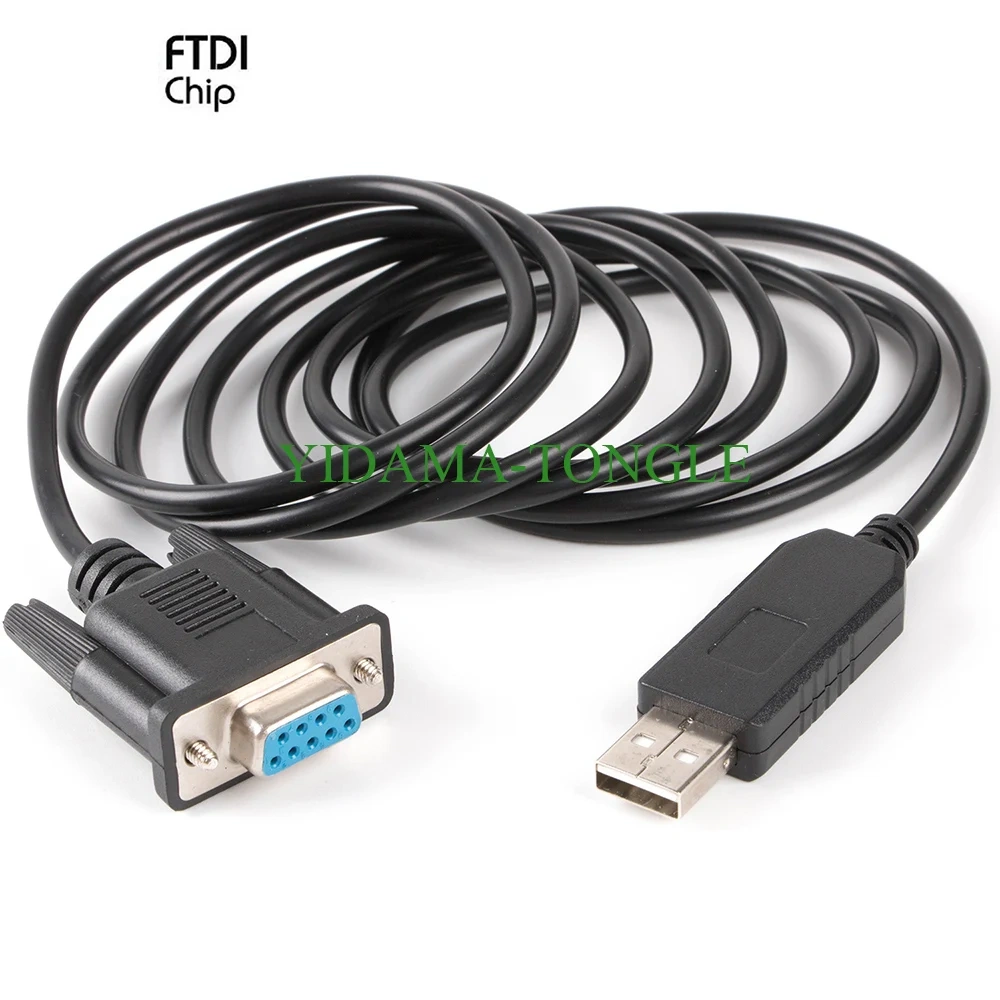

FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.
USB to Null Modem (Cross-Wired) RS232 Serial Adapte

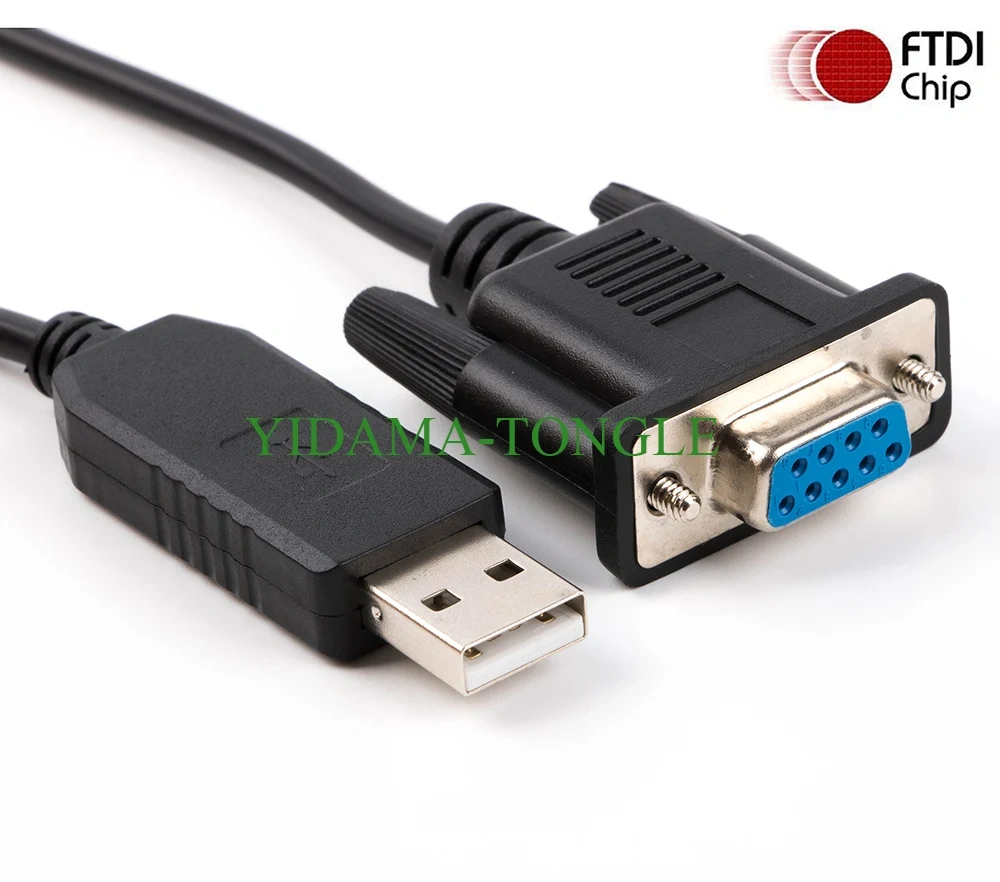

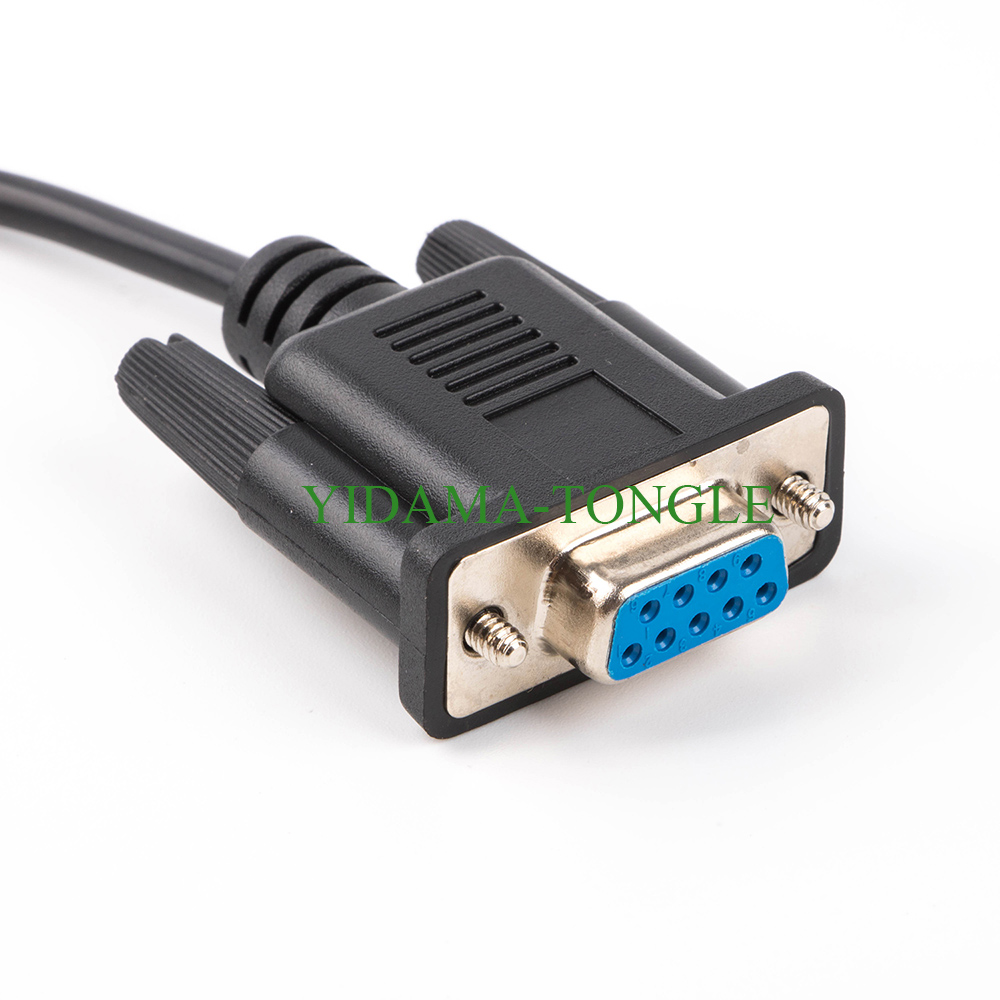

USB2.0 RS232 to DB9 female cable

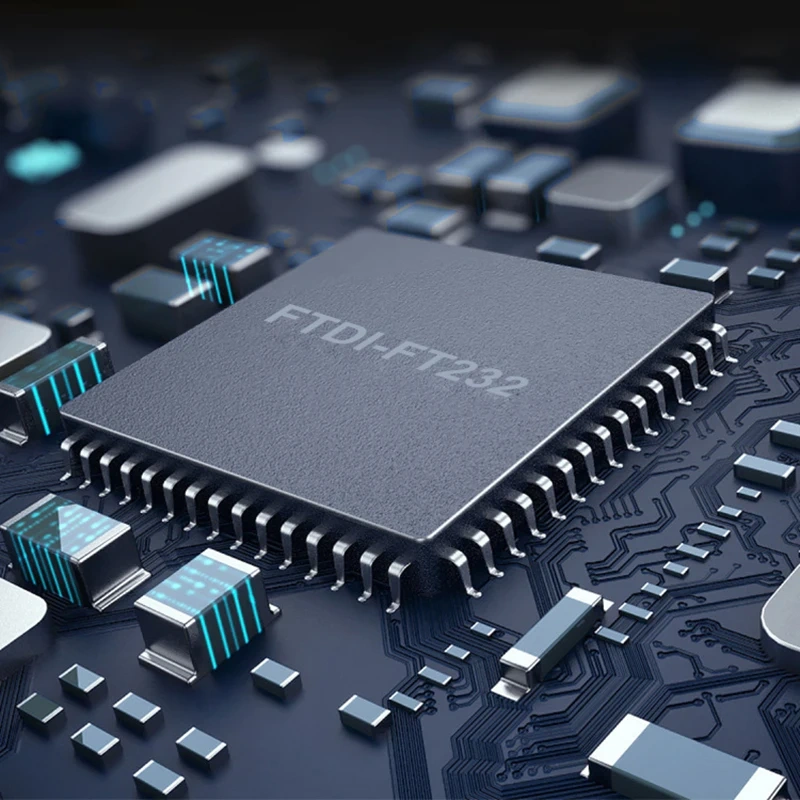

FT232RL+ZT213 chip
USB2.0 standard, full speed
Baud Rate up to 921.6Kb
Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):
2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC
Driverdownload : www.ftdichip.com
Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave)
2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC
USB to female serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9 port to laptop or desktop via USB port
Portable USB-Powered design requires no bulky power adapter with superior performance, offering an easy connectivity for serial plug devices
Built as FTDI serial cable for Windows 10, 8, 7, Mac OS8 or higher, Linux 2.4.0 and later
USB male to serial female cable is designed with a high performance quality processor chip (FT232 Chipset) that makes this USB to RS232 converter one of the most reliable adapters on the market
6 feet USB 2.0 to RS232 DB9 serial cable (male to female) is long enough for your devices to reach to a place needed (standard pinout: pin 2- RXD, Pin 3- TXD, Pin 5 - GND)
Package: 1 x usb db9 rs232 female cable
