USB RS232 Serial to DB9 Female Adapter Converter CP2102 Null Modem or Terminal device Cable support win7/8/10/xp/android/mac etc

Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):

     2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC

• USB to Null Modem serial adapter corrects DTE/DCE conflicts without requiring additional adapters or cables

• The CP2102 chipset is highly customizable and broadly compatible, making it the ideal solution for any setup

• Portable USB-Powered design requires no bulky power adapter or outlet

• USB to Null Modem (Cross-Wired) RS232 Serial Adapter

• Integrated CP2102 USB UART Chip

• Baud Rate up to 921.6Kbps

• COM Port assignments maintained across reboot

• USB-powered - no external power adapter required

• FTDI USB to Null Modem Serial Adapter Cable (1-Port) converts an available USB 1.1 or 2.0 port into an RS232 Null Modem serial DB9 port, solving DCE/DTE conflicts directly, without requiring additional cross-wired serial cables or adapters.

•


• USB to Null Modem (Cross-Wired) RS232 Serial Adapte

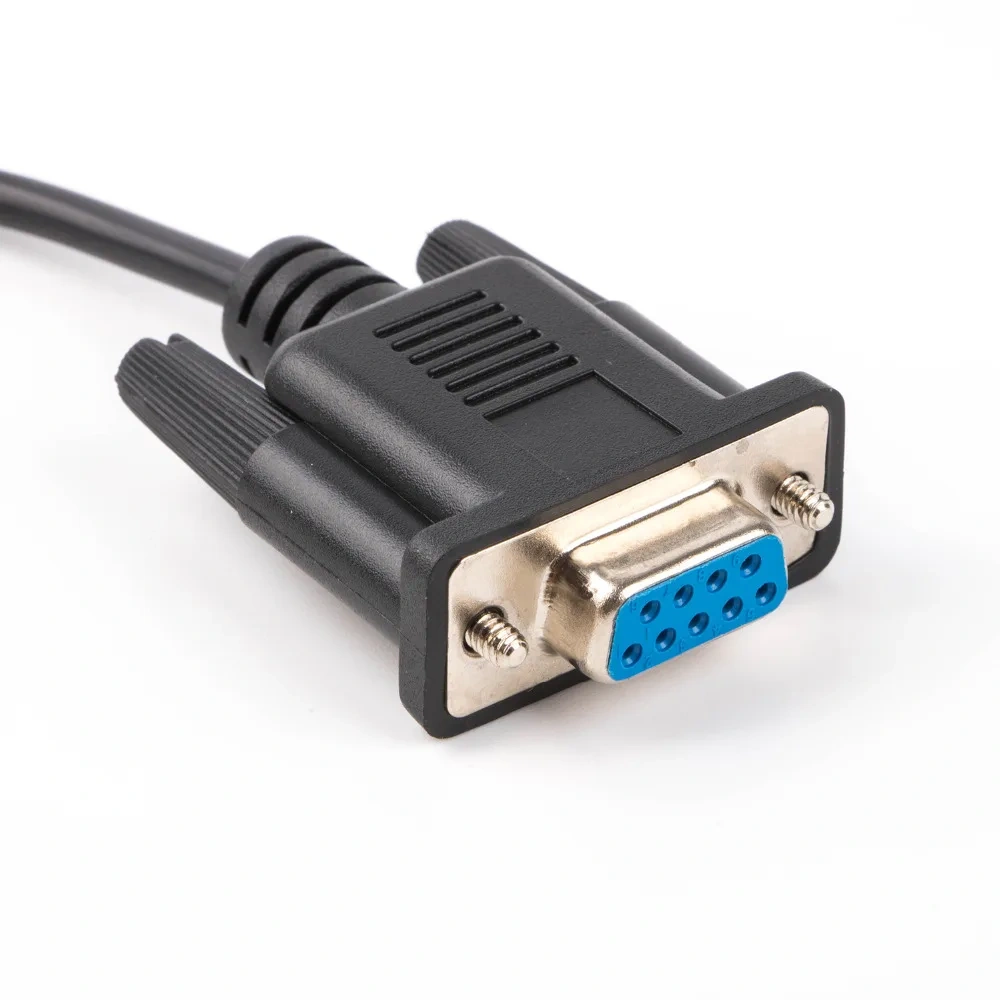

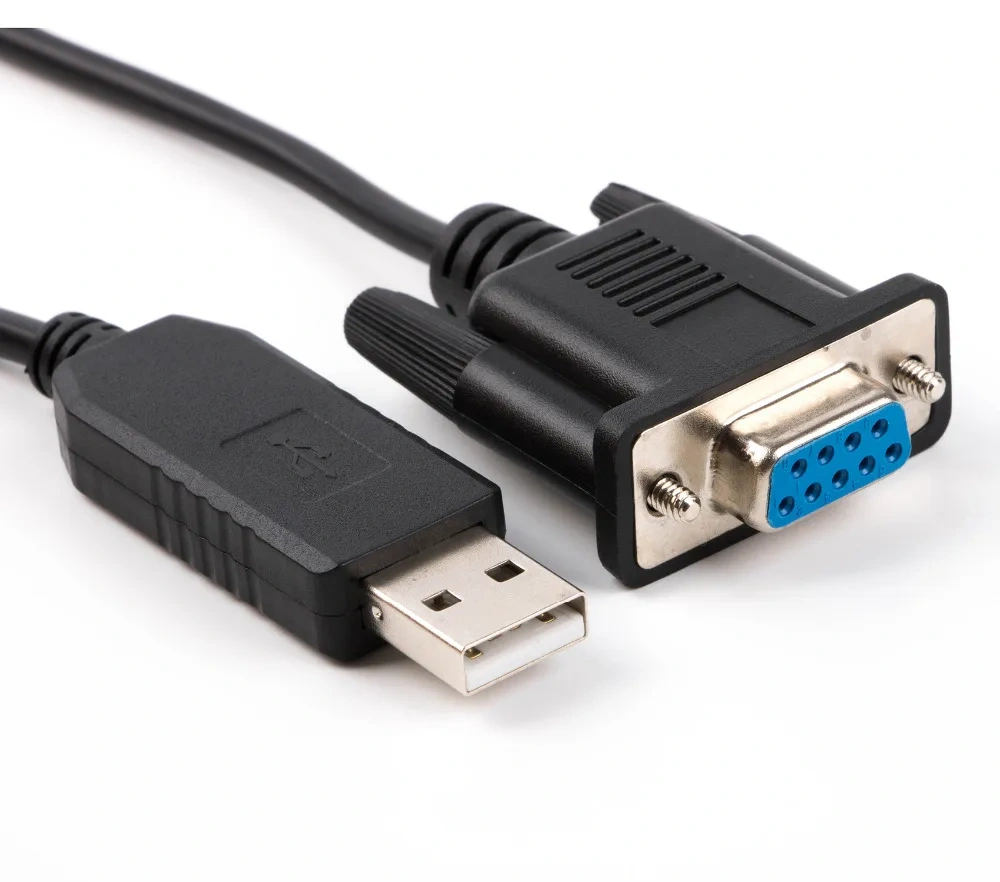

• USB2.0 RS232 to DB9 female cable

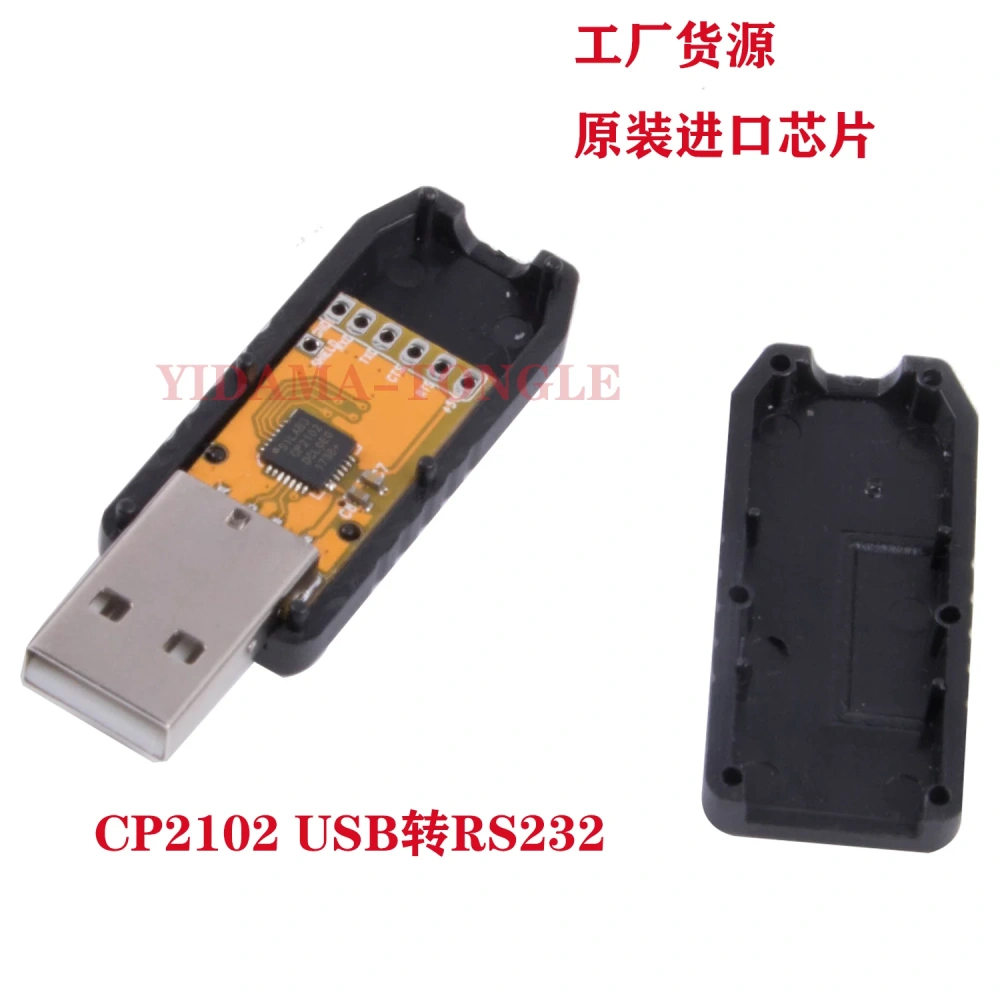

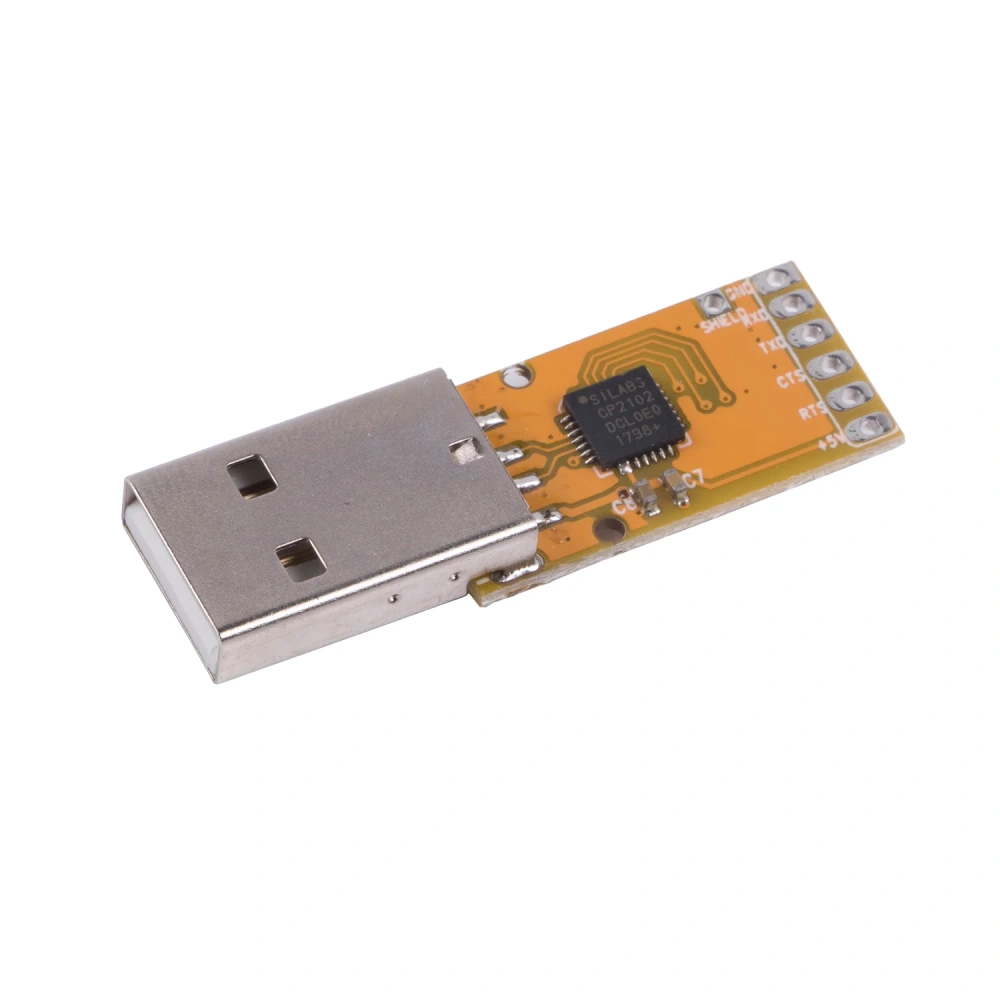

• CP2102+ZT213 chip

• USB2.0 standard, full speed

• Baud Rate up to 921.6Kb

• Null modem pinout(laptop pc with usb communicate with destop pc(with DB9 com port)):

• 2-TXD(yellow), 3-RXD(orange),5-GND(GND), 7-CTS(green),8-RTS(brown), 1/4/6/9-NC

• Driverdownload : www.silab.com

• Standard DB9 COM port pinout: pc(host) with usb to RS232 terminal device(slave)

       2- RXD(yellow), 3-TXD(orange),5-GND(GND), 7-RTS(green),8-CTS(brown), 1/4/6/9-NC

• USB to female serial port cable allows you to connects a PC without serial port to a serial device because it adds a 9 pin DB9 port to laptop or desktop via USB port

• Portable USB-Powered design requires no bulky power adapter with superior performance, offering an easy connectivity for serial plug devices

• Built as cp2102 serial cable for Windows 10, 8, 7, Mac OS8 or higher, Linux 2.4.0 and later

• USB male to serial female cable is designed with a high performance quality processor chip (cp2102 Chipset) that makes this USB to RS232 converter one of the most reliable adapters on the market

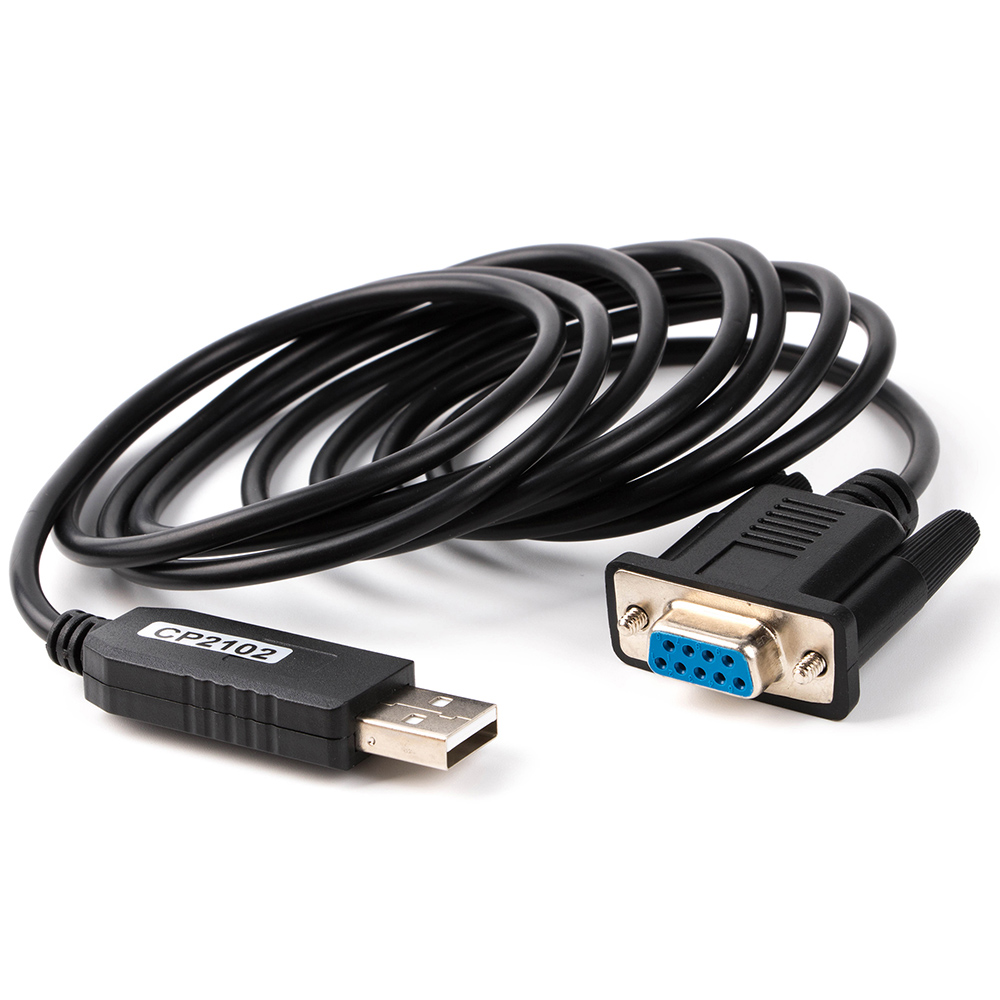

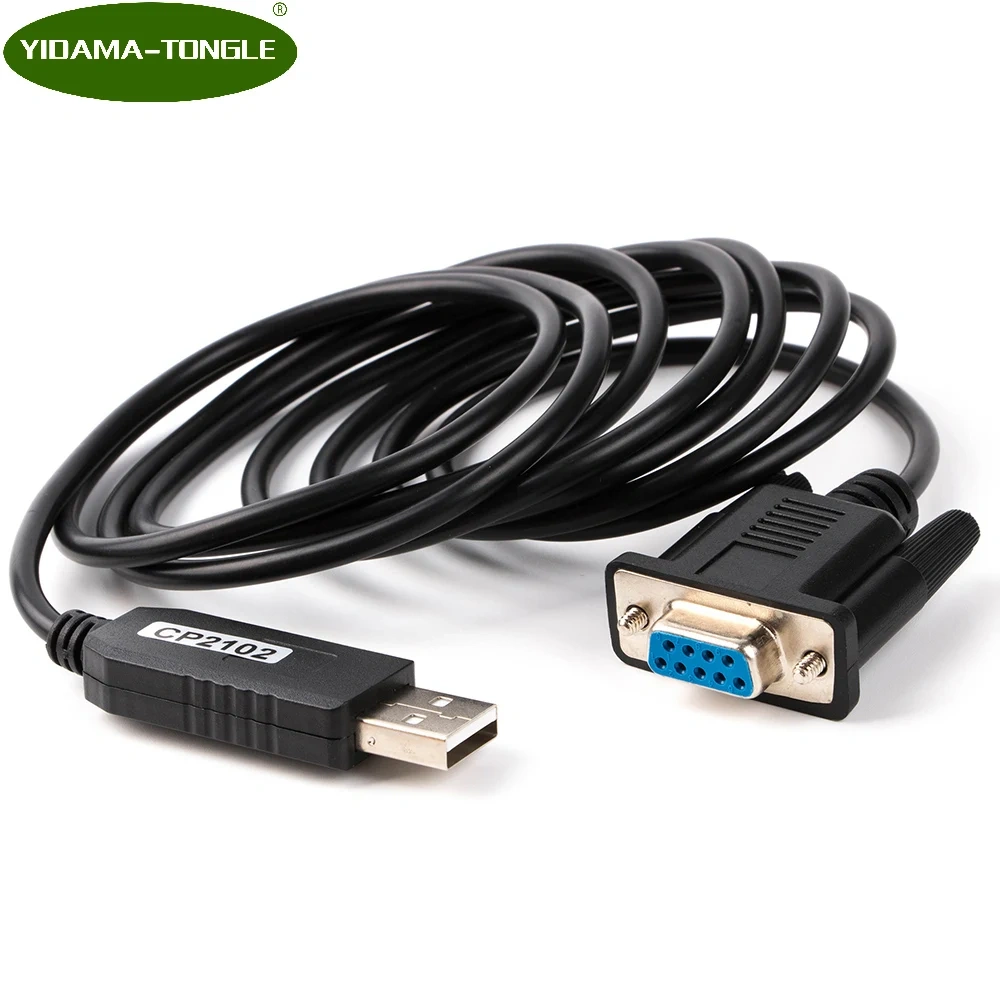

• 6 feet USB 2.0 to RS232 DB9 serial cable (male to female) is long enough for your devices to reach to a place needed (standard pinout: pin 2- RXD, Pin 3- TXD, Pin 5 - GND)

Package: 1 x usb db9 rs232 female cable

About CP2102

Single-Chip USB to UART Data Transfer
-Integrated USB transceiver; no external resistors required
-Integrated clock; no external crystal required
-Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
-On-chip power-on reset circuit
-On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
-100% pin and software compatible with CP2101

USB Function Controller
-USB Specification 2.0 compliant; full-speed (12 Mbps)
-USB suspend states supported via SUSPEND pins

Asynchronous Serial Data BUS (UART)
-All handshaking and modem interface signals
-Data formats supported:
-   Data bits: 5, 6, 7, and 8
-   Stop bits: 1, 1.5, and 2
-   Parity: odd, even, mark, space, no parity
-Baud rates: 300 bps to 1 Mbps
-576 Byte receive buffer; 640 byte transmit buffer
-Hardware or X-On/X-Off handshaking supported
-Event character support
-Line break transmission

Virtual COM Port Device Drivers
-Works with existing COM port PC Applications
-Royalty-free distribution license
-Windows 10/8/7/Vista/Server 2003/XP/2000
-Mac OS-X/OS-9
-Linux

USBXpress™ Direct Driver Support
-Royalty-Free Distribution License
-Windows 7/Vista/XP/Server 2003/2000
-Windows CE

Example Applications
-Upgrade of RS-232 legacy devices to USB
-Cellular phone USB interface cable
-USB interface cable
-USB to RS-232 serial adapter
Supply Voltage
-Self-powered: 3.0 to 3.6 V
-USB bus powered: 4.0 to 5.25 V
