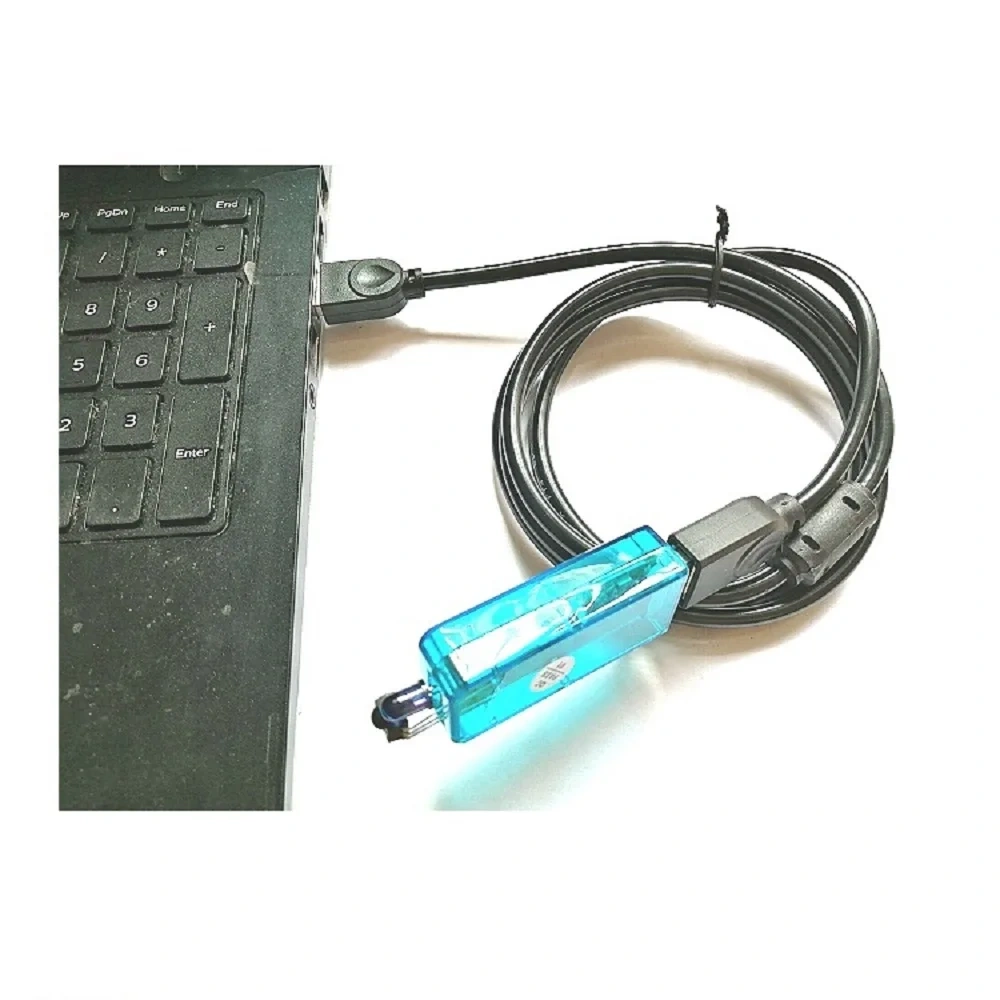

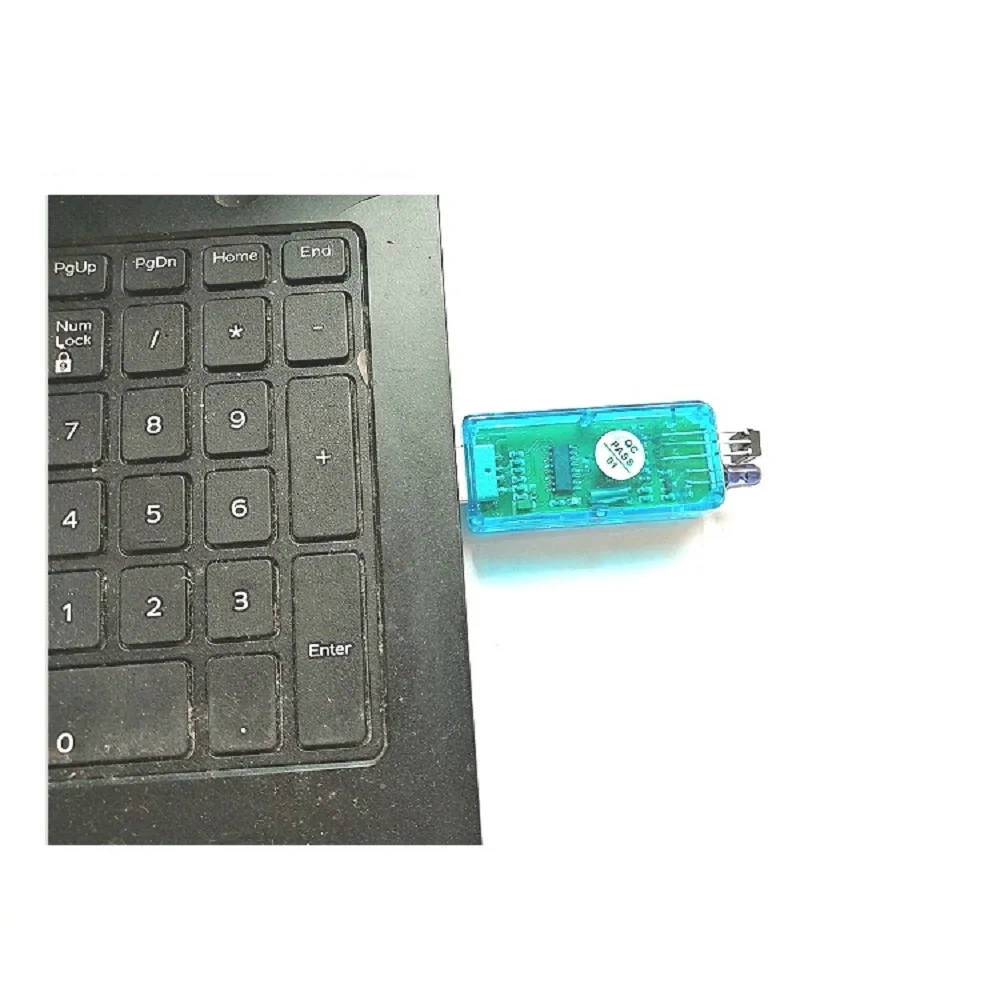

USB to Far Infrared IRDA Meter Reading Adapter, Smart Home Industrial Control Test and Debugging, 38kHz Carrier Converter
The USB to far-infrared converter is a basic 38KHZ signal modulation and demodulation far-infrared converter, USB 2.0 port, can be used when plugged into the computer. The converter is suitable for R&D/testers to test and debug industrial control equipment such as meters or smart homes that support far-infrared communication and the carrier signal is 38KHZ.
Product specifications:
1. Modulation and demodulation signal frequency: 38KHZ
2. Communication baud rate: up to 2400bps. Porter's effective range will be reduced
3. Communication distance and angle: 3~5 meters, ≤15°.
4. Working voltage: Take the USB terminal, plug it into the computer and use it
5. The direction of infrared sending and receiving is about 120°, not 360°. In far-infrared testing, the closer it is, the more stable it is. Since infrared transmission is a fan-shaped area, the transmission axis of each tube is somewhat deviated. Getting close can cause unstable communication. It is recommended that the distance be around 15~50cm during the test. It does not matter if it is farther away. Gradually increase the test distance. The actual measurement is 3 meters without any problem.
