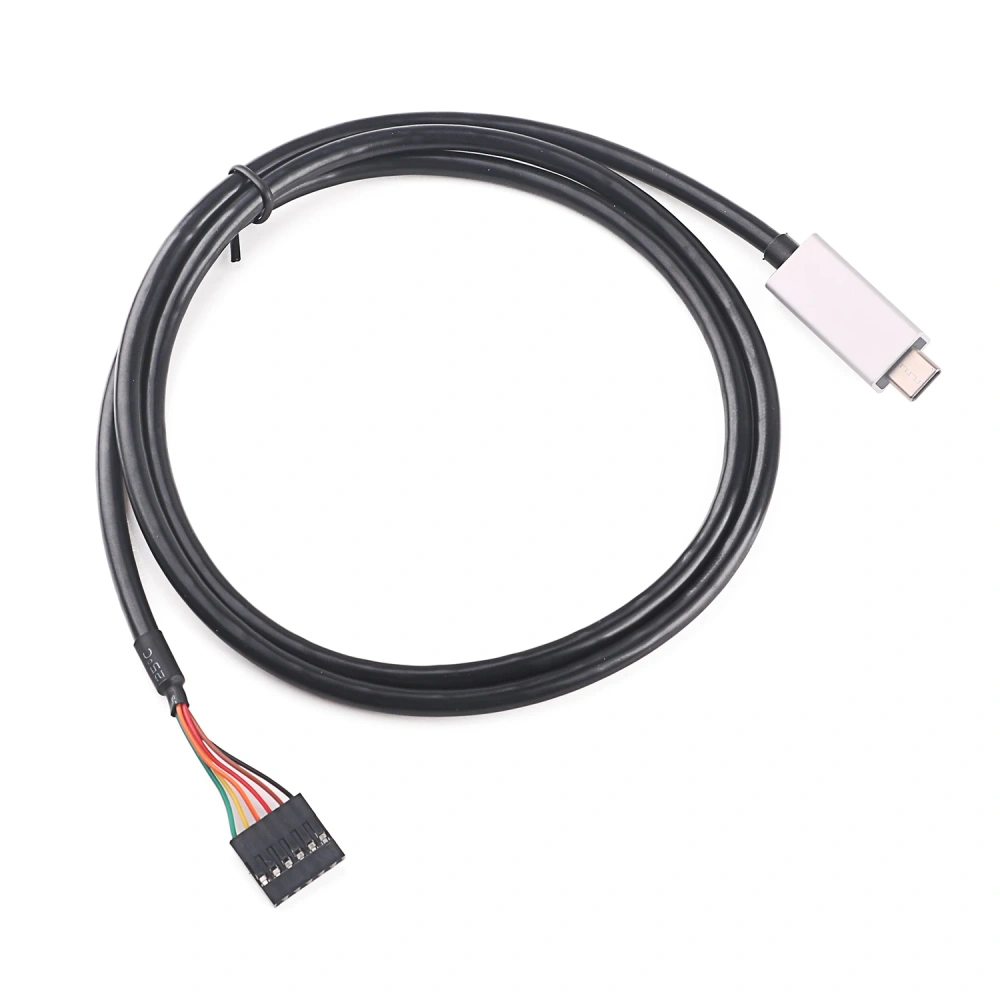

USB USBC Type C TypeC to 5 TTL UART Cable Dupont Header TTL232R Adapter for Intel Galileo Gen 2 Board
Chipset: FT232R
Length:1.8M

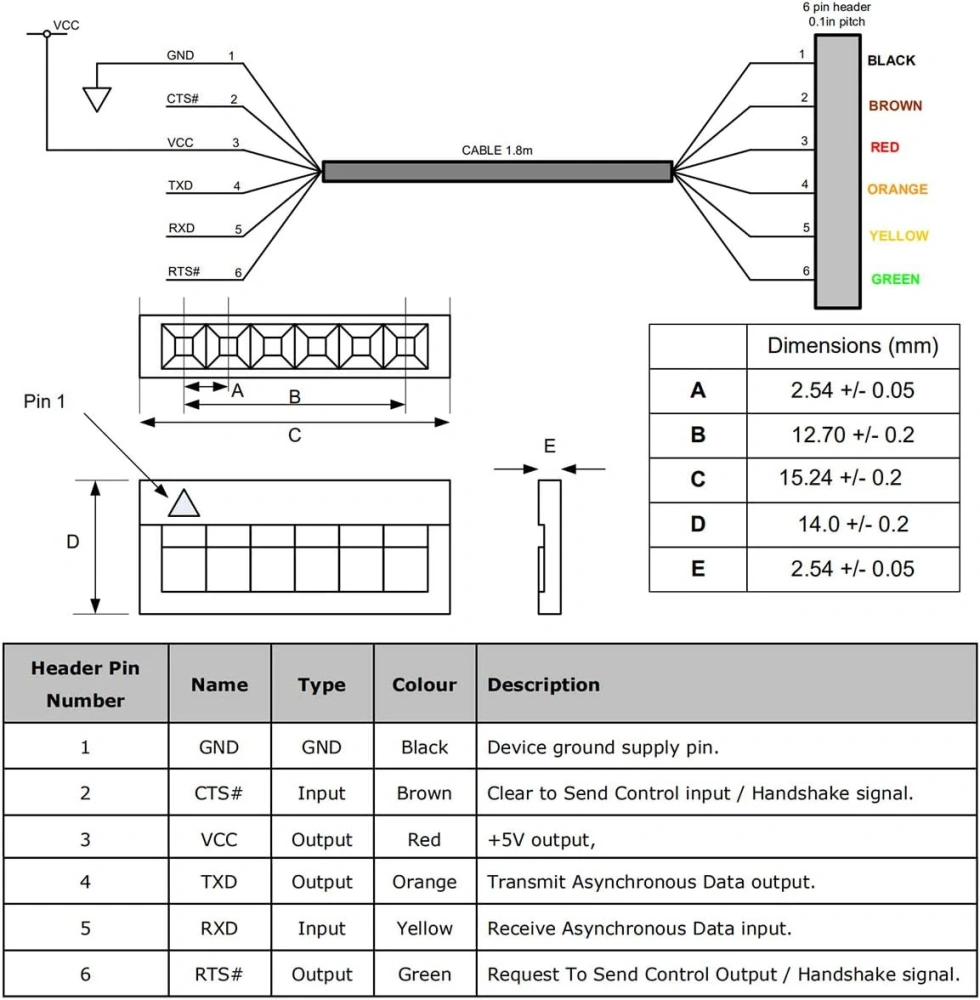

Pinout: GND,CTS#,VCC(+5V),TXD,RXD,RTS#
Logic Levels:5V
Supported OS : Windows ,Linux,Mac OS ,Androd
VIRTUAL COM PORT (VCP) Driversare available for the following Operating Systems (OS):
- Windows 11,10,8.1,8,Vista,7,XP
- Windows 98, 98SE, ME, 2000, - Server 2003, XP, Server 2008 and server 2012 R2
- Windows XP Embedded
- Windows CE 4.2, 5.0 and 6.0
- Mac OS 8/9, OS-X
- Linux 2.4 and greater - Android(J2xx / D2xx only)
See the following website link for the full driver support list including OS versions and legacy OS.
https://ftdichip.com/drivers/
Virtual COM Port (VCP) drivers cause the USB device to appear as an additional COM port available to the PC. Application software can access the USB device in the same way as it would access a standard COM port.
Please also refer to the Installation Guides documents for details on how to install the drivers.
https://ftdichip.com/document/installation-guides/
