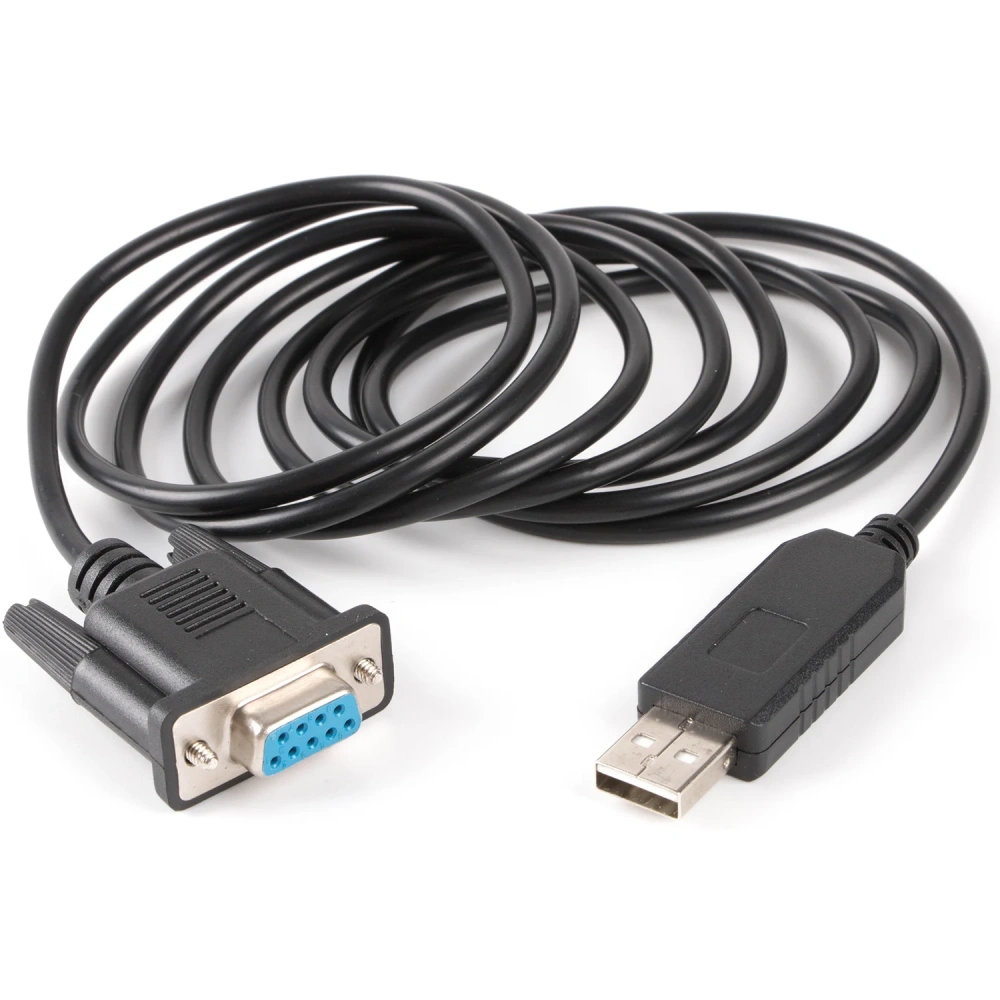

USB Yaesu CAT Programming Cable Silabs CP2102 RS232 DB9 Serial Converter Cable for Yaesu FT-450 FT-950 FT-1000MP FT-2000 FT-9000 ST-9F Programming Cable

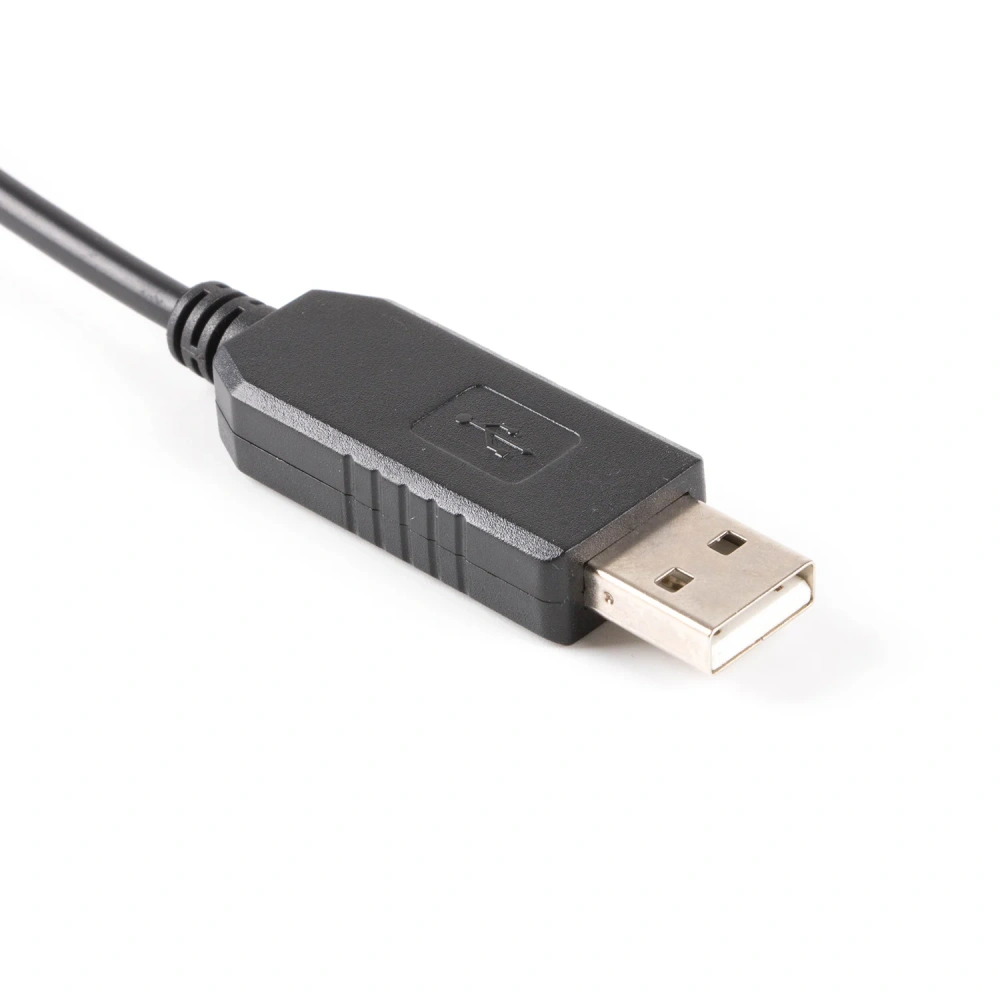

Connector A: USB 2.0 A Male

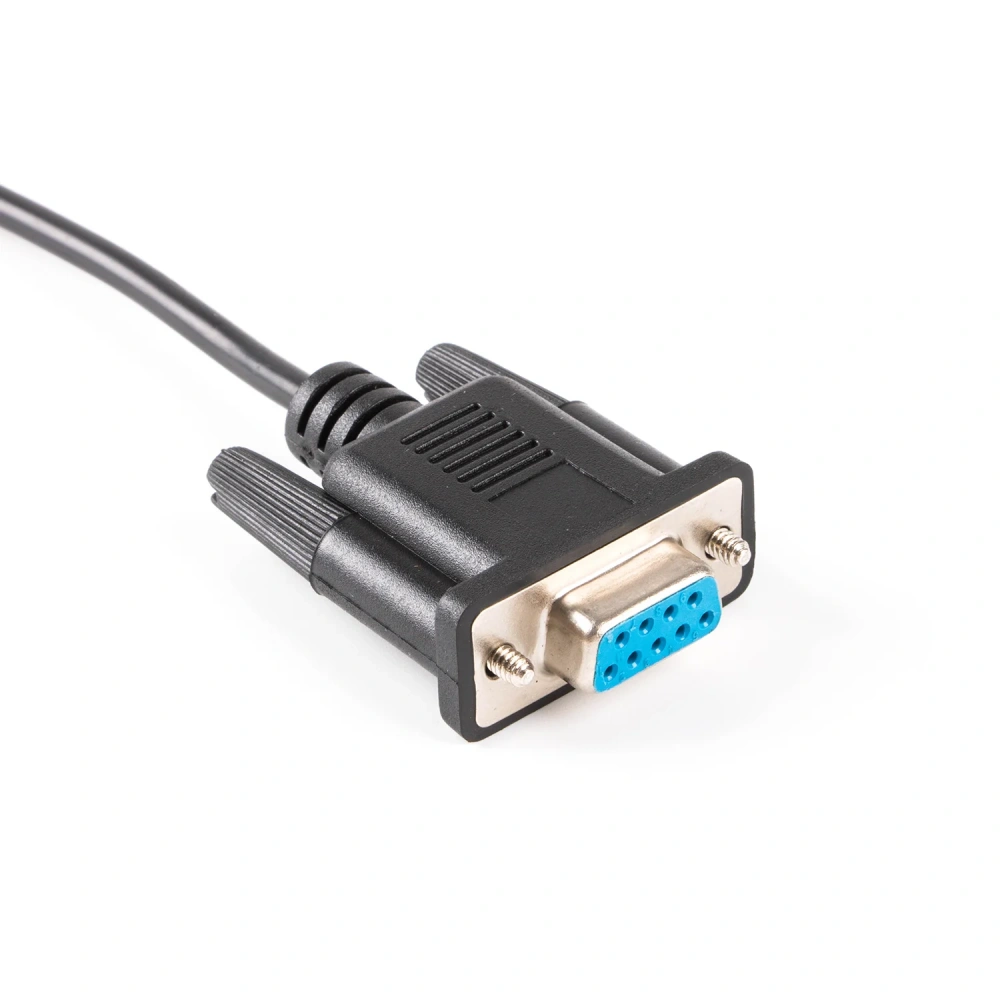

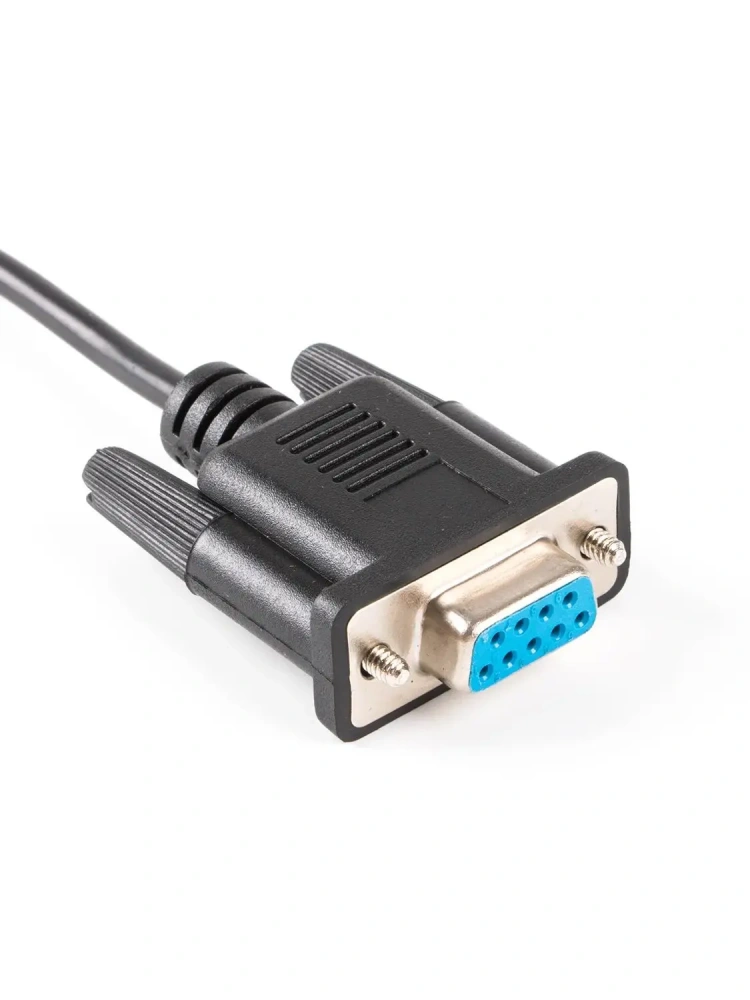

Connector B: DB9 Female
Chipset: Silabs
CE,ROhs Compliance
Length:1.8m
Material : PVC Jacket, Bare Copper Wires
OD:3.5MM
System Support: Win7/8/10/xp/android/mac os/linux/vista

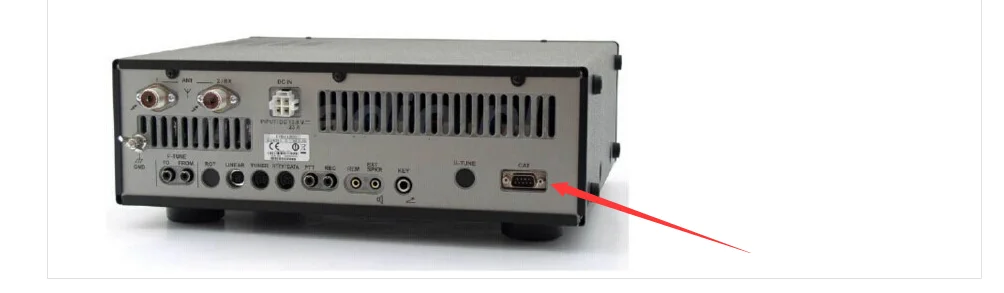

Application: 1 x CP2102 USB RS232 DB9 Female Programming Cable for Yaesu FT-450 FT-950 FT-1000MP FT-2000 FT-9000 ST-9F
About CP2102
Single-Chip USB to UART Data Transfer
- Integrated USB transceiver; no external resistors required
- Integrated clock; no external crystal required
- Internal 1024-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
- EEPROM (CP2102)
- EPROM (One-time programmable) (CP2109)
- On-chip power-on reset circuit
- On-chip voltage regulator
- 3.3 V output (CP2102)
- 3.45 V output (CP2109)
- 100% pin and software compatible with CP2101
USB Function Controller
- USB Specification 2.0 compliant; full-speed (12 Mbps)
- USB suspend states supported via SUSPEND pins
Asynchronous Serial Data BUS (UART)
- All handshaking and modem interface signals
- Data formats supported:
- Data bits: 5, 6, 7, and 8
- Stop bits: 1, 1.5, and 2
- Parity: odd, even, mark, space, no parity
- Baud rates: 300 bps to 1 Mbps
- 576 Byte receive buffer; 640 byte transmit buffer
- Hardware or X-On/X-Off handshaking supported
- Event character support
- Line break transmission
Virtual COM Port Device Drivers
- Works with existing COM port PC Applications
- Royalty-free distribution license
- Windows 8/7/Vista/Server 2003/XP/2000
- Mac OS-X/OS-9
- Linux
USBXpress Direct Driver Support
- Royalty-Free Distribution License
- Windows 8/7/Vista/Server 2003/XP/2000
- Windows CE
Example Applications
- Upgrade of RS-232 legacy devices to USB
- Cellular phone USB interface cable
- USB interface cable
- USB to RS-232 serial adapter
Supply Voltage
- Self-powered: 3.0 to 3.6 V
- USB bus powered: 4.0 to 5.25 V
CP210x USB to UART Bridge VCP Drivers
The CP210x USB to UART Bridge Virtual COM Port (VCP) drivers are required for device operation as a Virtual COM Port to facilitate host communication with CP210x products. These devices can also interface to a host using the direct access driver. These drivers are static examples detailed in application note 197: The Serial Communications Guide for the CP210x, download an example below:
AN197: The Serial Communications Guide for the CP210x
Download Software
The CP210x Manufacturing DLL and Runtime DLL have been updated and must be used with v6.0 and later of the CP210x Windows VCP Driver. Application Note Software downloads affected are AN144SW.zip, AN205SW.zip and AN223SW.zip. If you are using a 5.x driver and need support you can download archived Application Note Software.
Windows 7/8/8.1/10 (v6.7.3) »
Windows XP/Server 2003/Vista/7/8/8.1 (v6.7) »
Windows 2K (v6.3a) »
WinCE »
Macintosh OSX (v4) »
Linux »
Android »
